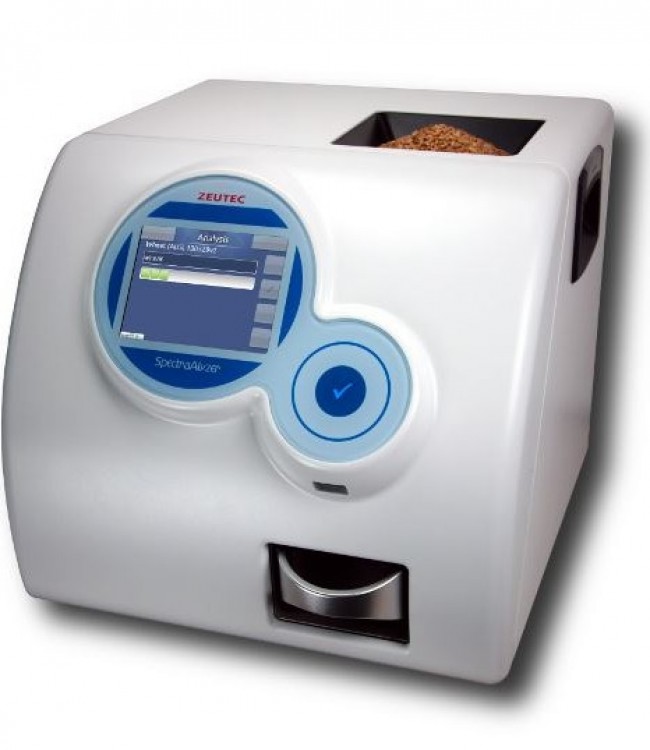

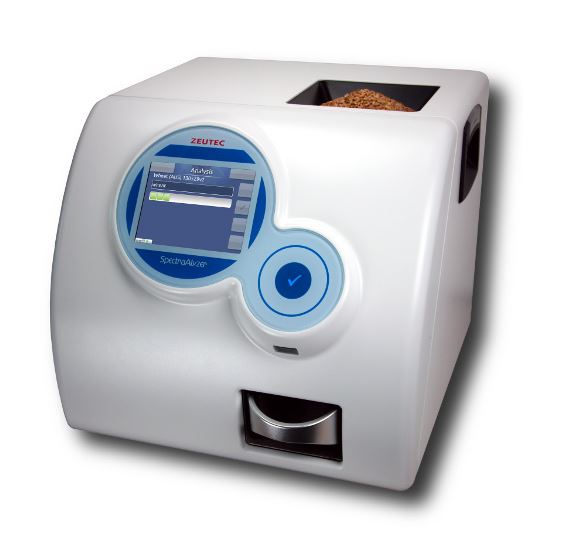

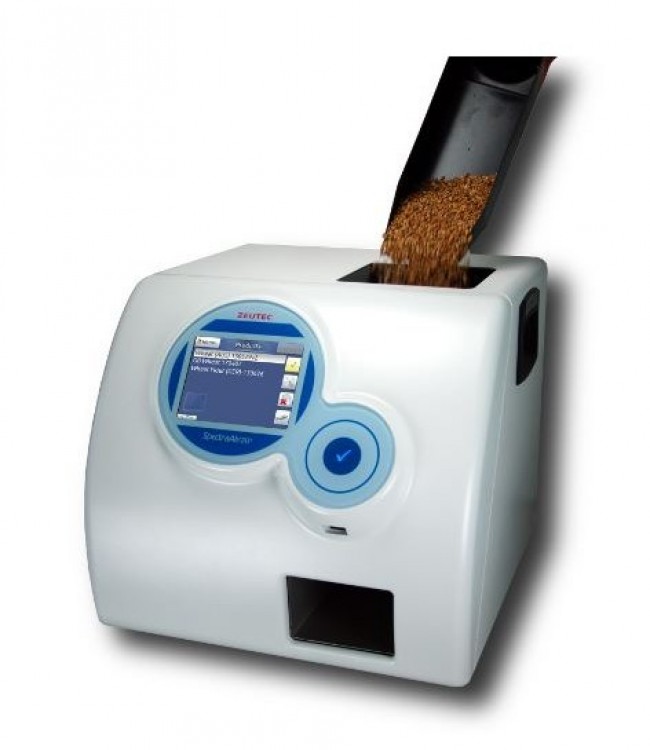

SpectraAlyzer GRAIN/Tahıl analizleri için
Technical data
SpectraAlyzer GRAIN
Design
| Design | NIR Monochromator |
| Spectral range | (570) 850 – 1100 nm |
| Verification of wavelength | Automatically during start-up |
| Optical bandwidth | 4 nm |
| No of datapoints | 1000 |
| Measurement | Transmisson |
| Sample presentation | Automatic |
| Optical path length | Automatically adjusted, range 6 – 30 mm |
| Measuring time | 45 s, 200 – 300 g sample |
Display
| Screen | TFT 640 x 480 pixel, colour |
| User Interface | Glass, COS “Central Operation Slider”, multi-language GUI |
Software
| Software | Integrated, stand-alone operation, fail-safe |
| Software / database storage | Compact flash disk 4 GB |
| Interfaces | RS232, USB, Ethernet |
| Printer | Printer as optional accessory |
| Input voltage / rated current | 90 – 260 V, self-detecting / 200 VA |
| Protection | Dust and humidity |
Dimensions
| Dimensions | Height: 370 mm / width: 400 mm / depth: 440 mm |
| Weight | 27 kg |
Modules
| Flour module | For flour, semolina, soy meal and other ground samples |
| Test Weight Module | For determination of volume to weight ratio of the sample |
Options
| Bluetooth, WLAN, Application worx, wavelength standard, barcode reader, keyboard |
